Alpine Ranch House Plan | Single Story Home | Blueprint PDF (Slab on Grade Foundation)
ITEM DETAILS
- 3 Bedrooms
- 2 Bathrooms
- 2 Car Garage
- Width: 37 ft.
- Length: 60 ft.
- Heated Area: 1,427 sq. ft.
This is the Slab On Grade Foundation Version of The Alpine: Grand, Functional, and Crafted for Structural Integrity.
The Alpine offers 1,427 sq. ft. of thoughtful, single-story living space featuring a highly sought-after open-concept layout. This plan includes 9’ ceilings throughout, three spacious bedrooms, two full bathrooms, a dedicated utility room, and a large attached 2-car garage. The heart of the home boasts a dramatic vaulted ceiling over the great room and an efficient kitchen/dining area with a substantial island and pantry.
This version is built on a concrete slab on grade foundation, offering durability, affordability, and low-maintenance living.
Plan Features:
✅ Heated Area: 1,427 sq. ft.
✅ Porch Areas: Covered Front Porch: 136 sq. ft. and Covered Rear Porch: 84 sq. ft.
✅ Bedrooms: 3
✅ Bathrooms: 2 Full Baths
✅ Ceiling Height: 9′ 1 1/8″ (with Vaulted Living Room)

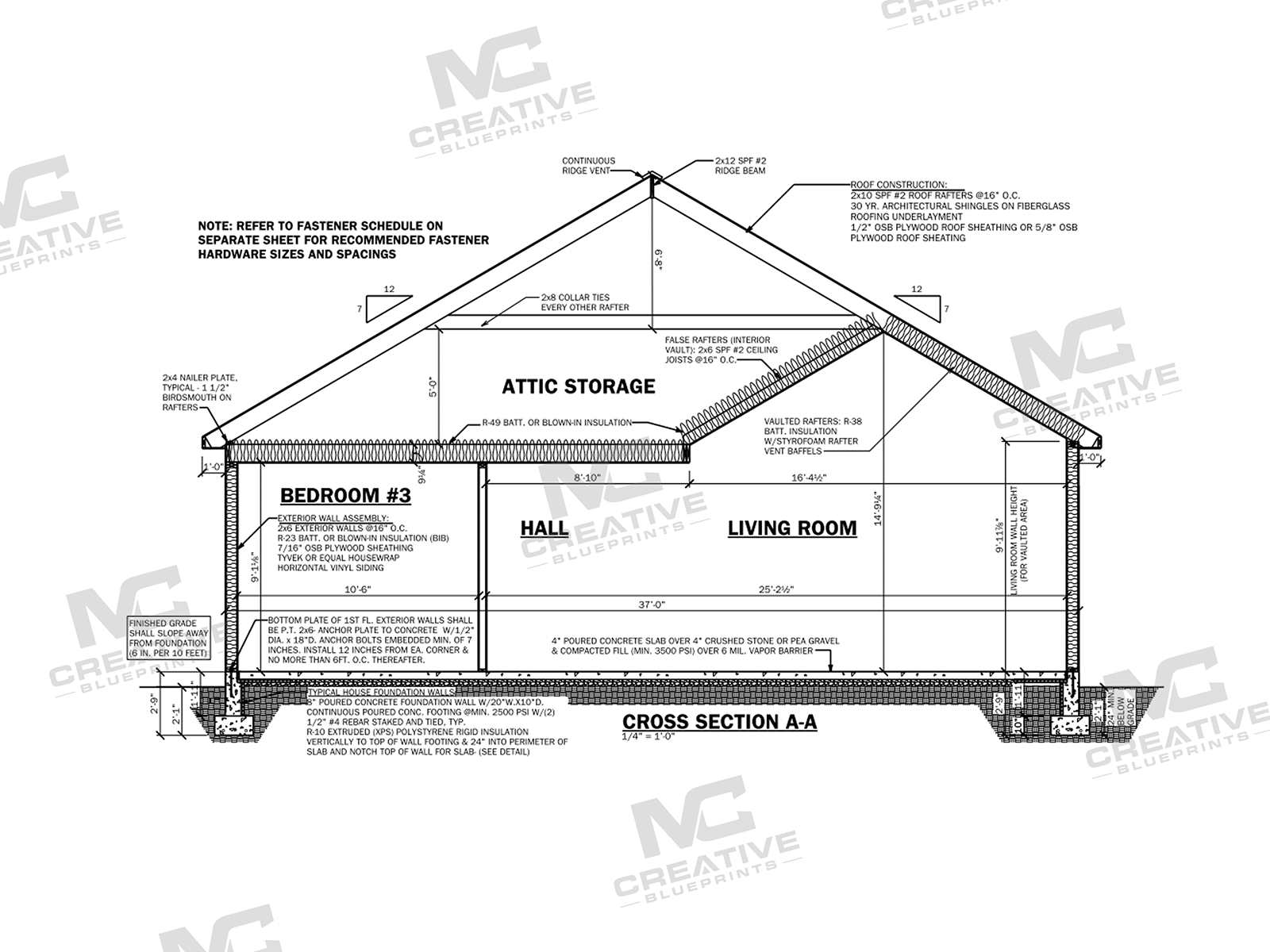

✅ Foundation: Poured Concrete Walls with Insulated Slab
✅ Framing: 2×6 Exterior Walls
✅ Roof Framing: Stick Framed (Rafters)
✅ Height: Approx. 22’
✅ Home Dimensions: Approx. 37’ W. x 60’ D.
What’s Included in Your Purchase:

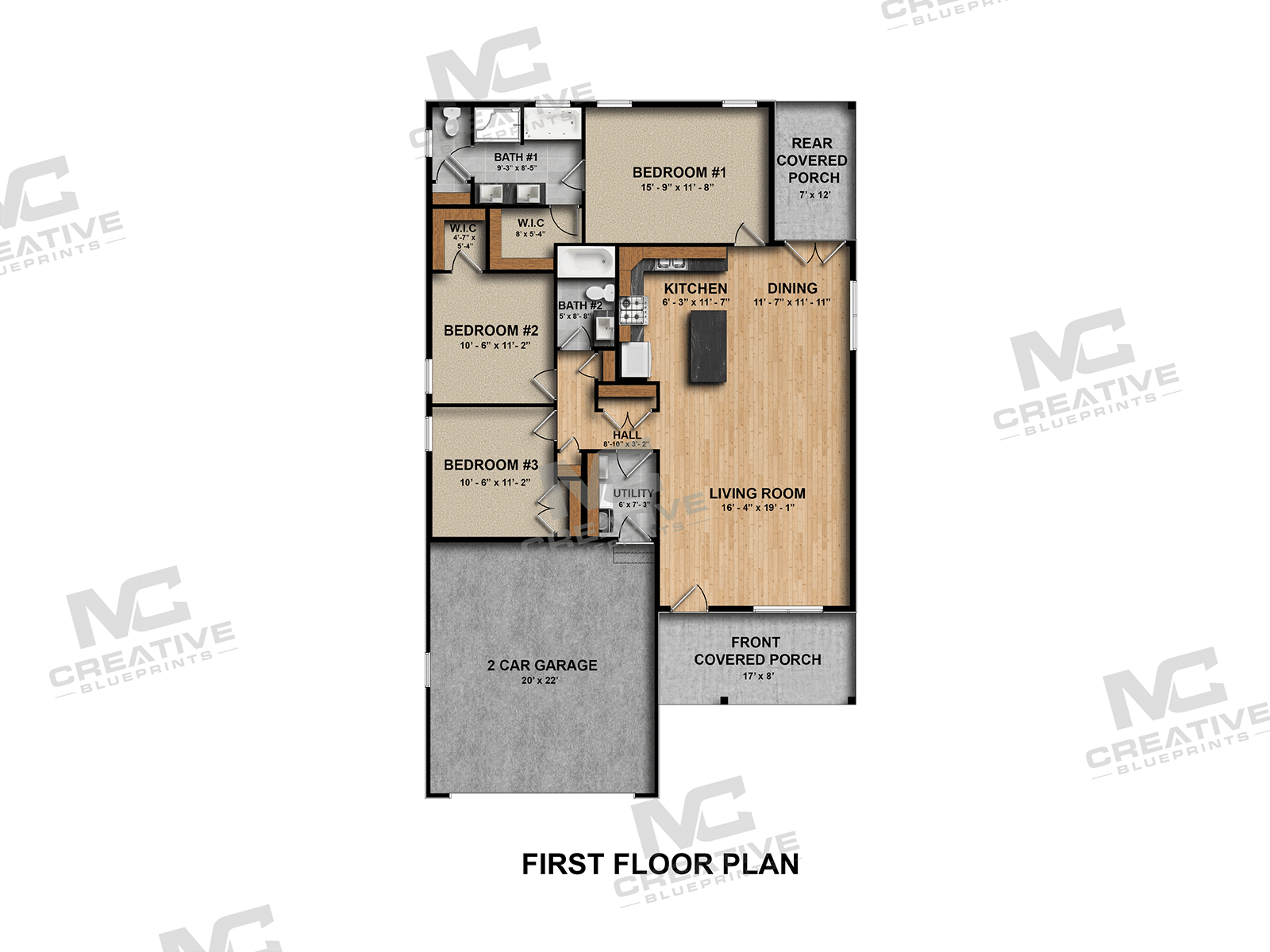

📐 Complete Architectural Floor Plans (PDF) – Fully dimensioned and professionally drawn
🛠 DIY Materials List – Ideal for budgeting and sourcing materials
🏡 Functional Layout – Includes three bedrooms, open living, kitchen/dining, and private utility/laundry
💡 Code-Conscious Design – Created to align with standard North American building codes
📩 Need custom changes? Message us to request modifications or additional features.
Why Choose MC Creative Blueprints?
✔ Professionally designed with experience in functional layouts
✔ Easy-to-follow plans, optimized for builders & DIYers
✔ Instant download—start planning today!
⚠ Copyright Notice: For personal use only. Redistribution or commercial use is prohibited.
🔨 Download now and build your spacious Alpine home with a conditioned CMU foundation!
This is a DIGITAL DOWNLOAD. No physical item will be shipped. Files are formatted to print on 11″x17″ sheets for easy use.
