Carriage Cottage ADU Single Car Garage Apartment House Plan (Reversed) | Small Home | Blueprint PDF (Multi-Foundation)

This is the reversed (flipped) version of The Carriage Cottage model. This reversed layout offers the same functional design as the original but mirrored to better suit your lot orientation.

The Carriage Cottage is a one-bedroom, one-bath single-story ADU (accessory dwelling unit) home plan with an integrated single car garage, designed with versatility and simplicity in mind. Featuring 526 square feet of heated living space paired with a functional 333 sq. ft. single-car garage, this design maximizes its compact footprint. It is ideal for use as a poolside guest house, starter home, in-law suite, or rental unit on your existing property.

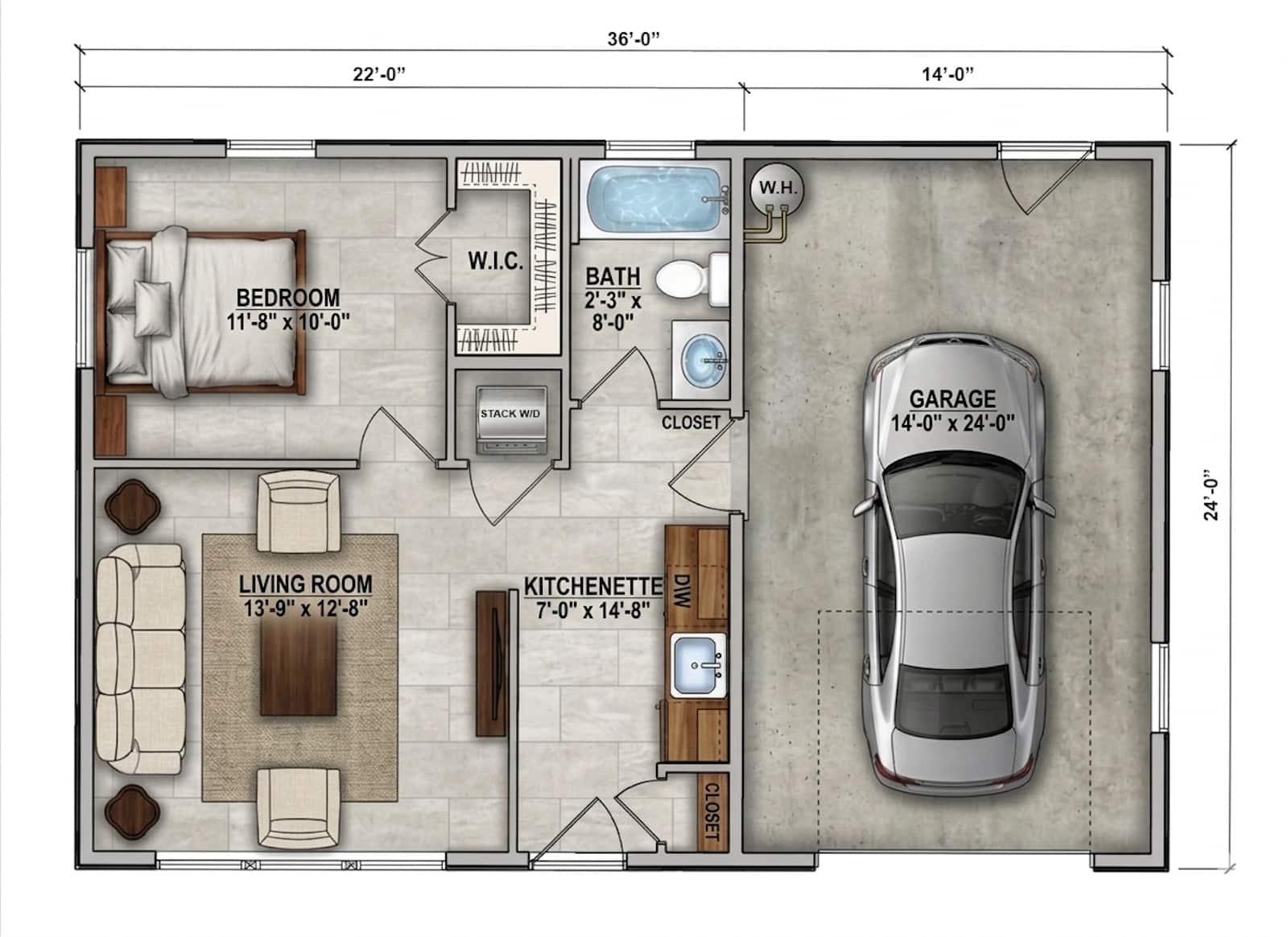

Inside, you’ll find a smart, space-efficient layout that includes a functional kitchenette with single sink and under-counter refrigeration, a cozy living room setup with a dedicated TV wall, and an adjacent stack laundry space. The master bedroom suite features an attached walk-in closet (W.I.C.) and direct, convenient access to the full bathroom. Designed with a multi-foundation approach—featuring detailed options for either a turn down slab (monolithic pour) or a slab-on-grade with poured stem wall foundation—and sturdy 2×6 framing, The Carriage Cottage blends style, function, and durability.

Elevate your build with a complete, ready‑to‑use architectural plan set designed to streamline every step of construction. Each package includes precision‑crafted construction drawings and a fully itemized materials list, giving you everything you need to move from concept to completion with confidence.

Architectural plans are delivered as PDFs optimized for 11×17 (tabloid) printing at true scale, ensuring crisp, professional results. Estimate lists arrive in easy‑to‑print 8.5×11 (letter) format, perfect for budgeting, planning, and contractor coordination.

🔹 Looking for more accessory dwelling unit (ADU) or garage plans? Be sure to favorite our shop for future updates!

Plan Features:
Overall Dimensions: 36’ x 24’

Total Heated Area: 526 sq. ft.

Attached Garage Area: 333 sq. ft. (featuring a 9’x8′ overhead garage door)

Bedrooms: 1 Bedroom Suite with Walk-In Closet

Bathrooms: 1 Full Bath

Ceiling Height: Airy 9′ Ceilings (9′ 1 1/8″ rough) throughout the main living areas

Foundations Included: Dual options! Turn Down Slab (Monolithic Pour) on Grade AND Slab on Grade (poured stem wall) Foundation

Framing: 2×6 Exterior Walls (16″ O.C.)

Roof Framing: Durably Stick-Framed (2×8 roof rafters 16″ O.C. with a 2×10 ridge beam)

Architectural Details: Features a prominent front overframed false gable, vinyl or Hardie board siding, and continuous ridge venting.

What’s Included in Your Purchase:
📐 Complete Architectural Floor Plans – Fully dimensioned, detailed, and ready to build

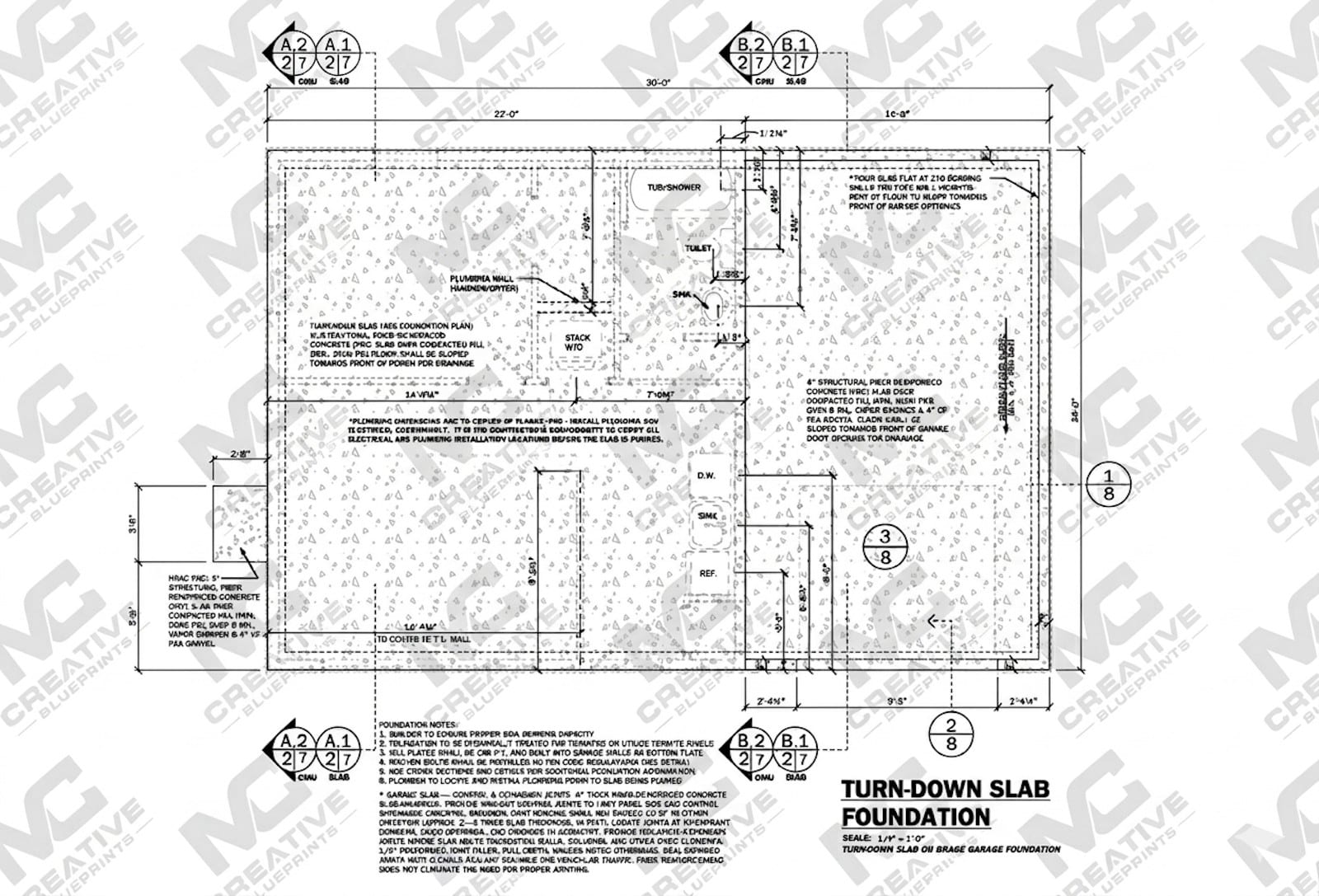

🏗 Multi-Foundation Engineering Details – Complete blueprint layouts for both turn-down monolithic slab and poured wall configurations

🛠 Detailed Cross Sections & Fastening Schedules – Wall assembly specifications, insulation callouts (R-23 walls / R-49 ceilings), and code fastens to guide your builders

🏡 Optimized Layout – Kitchenette space, living room, laundry nook, private bedroom suite, and seamless interior garage entry

💡 Designed to Code – Created for standard North American building requirements (115 MPH basic wind speed, 30 PSF snow load capacity)

📩 Need modifications? Send us a message to discuss custom plan options.

Why Choose MC Creative Blueprints?
✔ Professionally designed with standard builder optimizations

✔ Easy-to-follow construction plans, engineered clearly for builders & DIYers

✔ Get your plans today so you can start planning your build!

⚠ Copyright Notice: These plans are for personal use only. Redistribution or commercial resale is strictly prohibited.

🔨 Get your plans now and start building The Carriage Cottage for your family, guests, tenants, or your own backyard retreat!
