Heritage Garage and House Plan | Two Car Garage with Loft Apartment | Blueprint PDF (Multi Foundation)
ITEM DETAILS
- 1 Bedroom
- 1 Bathroom
- 2 Car Garage
- Width: 24 ft.
- Length: 30 ft.
- Heated Area: 1,376 sq. ft.
The Heritage is a premium two-story detached garage and loft apartment plan, thoughtfully designed with 716 square feet of garage space and a 660-square-foot upstairs living area. The main level features a spacious two-car garage with a dedicated workshop, while the second floor offers a complete loft apartment/guest suite—ideal as a rental unit, home office, or private retreat. Both foundation options are included: slab-on-grade and CMU block, giving builders the flexibility to choose what works best for their site.

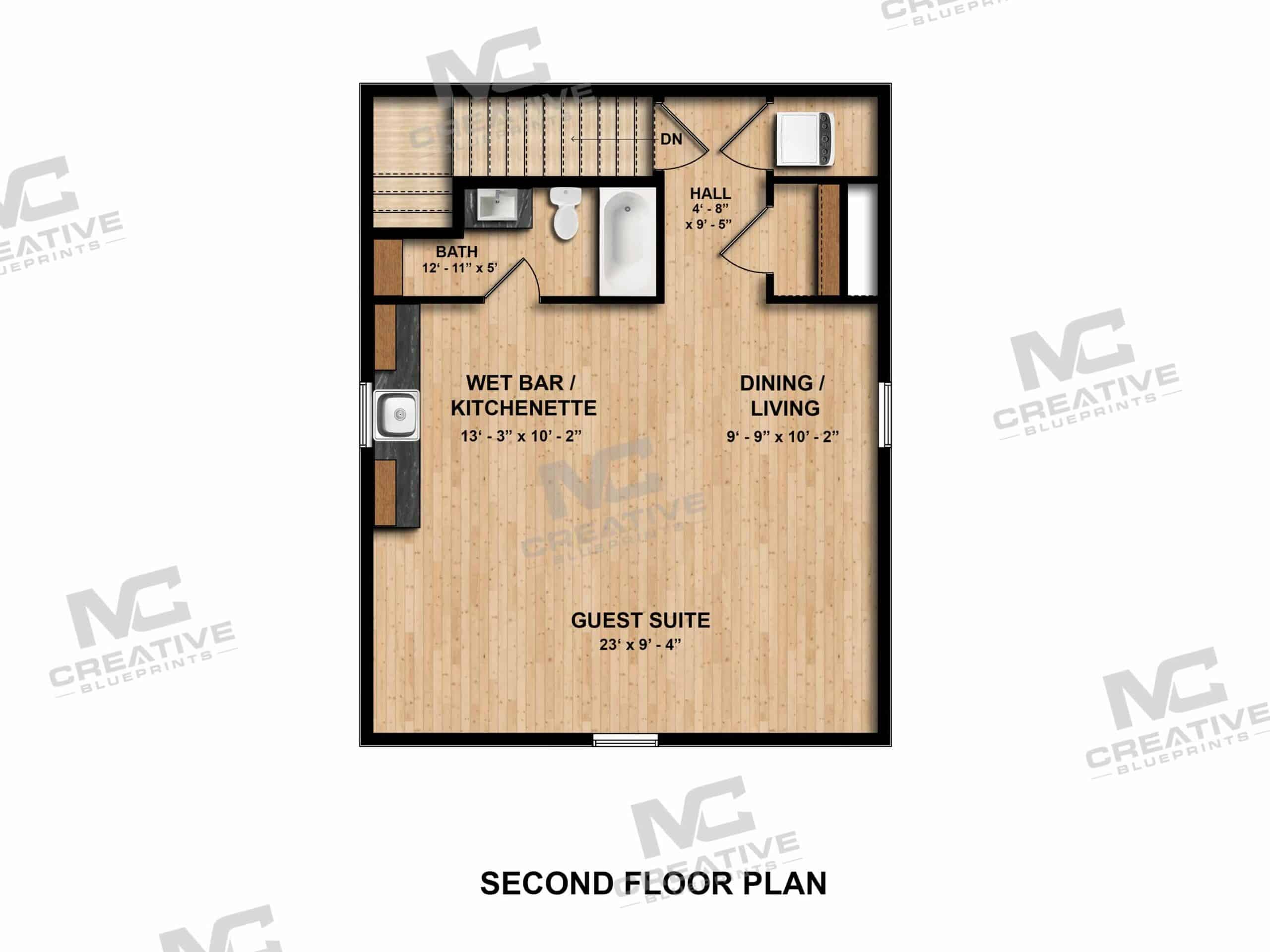

Crafted for modern comfort, the second floor includes a dedicated dining/living area, a wet bar/kitchenette, a full bathroom, and a laundry closet. Built on a monolithic turn-down slab foundation with 2×6 exterior wall framing, this plan is optimized for structural integrity and energy efficiency.
This complete set of architectural plans includes everything you need to begin your build, from detailed floor layouts and elevations to a comprehensive fastening schedule.
Plan Features:
✅ Size: 24’ x 30’
✅ Total Area: 1,376 sq. ft. (660 sq. ft. Garage / 716 sq. ft. Living)
✅ Ceiling Height: 9′ clear (9′ 1 1/8″ rough) on both floors
✅ Garage Doors: (2) 9’ x 8’ Overhead with windows
✅ Entry Door: 36” Side Entry with Concrete Landing
✅ Foundation: BOTH Monolithic Turn-Down Slab and CMU Block options included
✅ Framing: 2×6 Exterior Walls (16″ O.C.)
✅ Roof Framing: Stick Framed with 2×12 Rafters
✅ Roof Pitch: 12/12 Main Pitch
✅ Overall Height: Variable based on 9′ ceilings and 12/12 pitch
✅ Full Material List for estimating (both foundation options are included)
What’s Included in Your Purchase:
📐 Complete Architectural Plans (PDF) – 12 detailed sheets including floor layouts, elevations, foundation plans, and construction notes.
🛠 DIY-Friendly Material List – A full list of materials for easy sourcing
* DIY-Friendly Design – Ideal for homeowners and contractors alike, featuring professionally designed specs based on standard North American building codes.
🚗 Multi-Use Functionality – Perfect for vehicle storage, a workshop, or a secondary dwelling unit.
💡 Professionally Designed – Created by MC Creative Blueprints with over 20 years of design experience.📩
Need modifications? Send us a message to discuss custom plan options.
This is a DIGITAL DOWNLOAD. No physical item will be shipped.
Files are formatted to print on 11″x17″ sheets for easy use.
Why Choose MC Creative Blueprints?
✔ Professionally designed with extensive industry experience
✔ Easy-to-follow construction plans, optimized for builders & DIYers
✔ Instant download so you can start planning today!
⚠ Copyright Notice: These plans are for personal use only. Redistribution or commercial use is prohibited.
🔨 Ready to expand your space? Download The Heritage and build it your way!
