Mapleview Ranch House Plan (Reversed) | Single Story Home | Blueprint PDF (Slab on Grade Foundation)
ITEM DETAILS
- 3 Bedrooms
- 2 Bathrooms
- Width: 30 ft.
- Length: 44 ft.
- Heated Area: 1,320 sq. ft.
This is the Reversed (mirrored) Slab On Grade Foundation version of The Mapleview: A bright and functional ranch-style home that’s perfect for family life or simplified living.
The Maplewood is a 1,320 sq. ft. single-story home plan with a modern open layout and classic curb appeal. Designed for small families, first-time buyers, or those looking to downsize, this thoughtfully crafted rancher features three spacious bedrooms, including a private primary suite, two full bathrooms, and a bright, airy living/dining/kitchen space with a large island for entertaining.
This plan also includes a dedicated laundry room, a mechanical area, and a welcoming 6-foot-deep covered front porch. Built with 2×6 framing and poured concrete walls w/insulated slab foundation, The Maplewood is comfortable, energy-efficient, and garage-ready with convenient side access.
🔹 Like modern ranchers or small family homes? Favorite our shop to be the first to see new releases!
Plan Features:
✅ Size: 30’ x 44’
✅ Total Heated Area: 1,320 sq. ft.
✅ Front Porch Area: 84 sq. ft. (14’ x 6’)
✅ Bedrooms: 3 (including spacious primary suite)
✅ Bathrooms: 2 Full Baths
✅ Ceiling Height: 8′ 1 1/8″
✅ Foundation: Poured concrete walls w/insulated slab floor

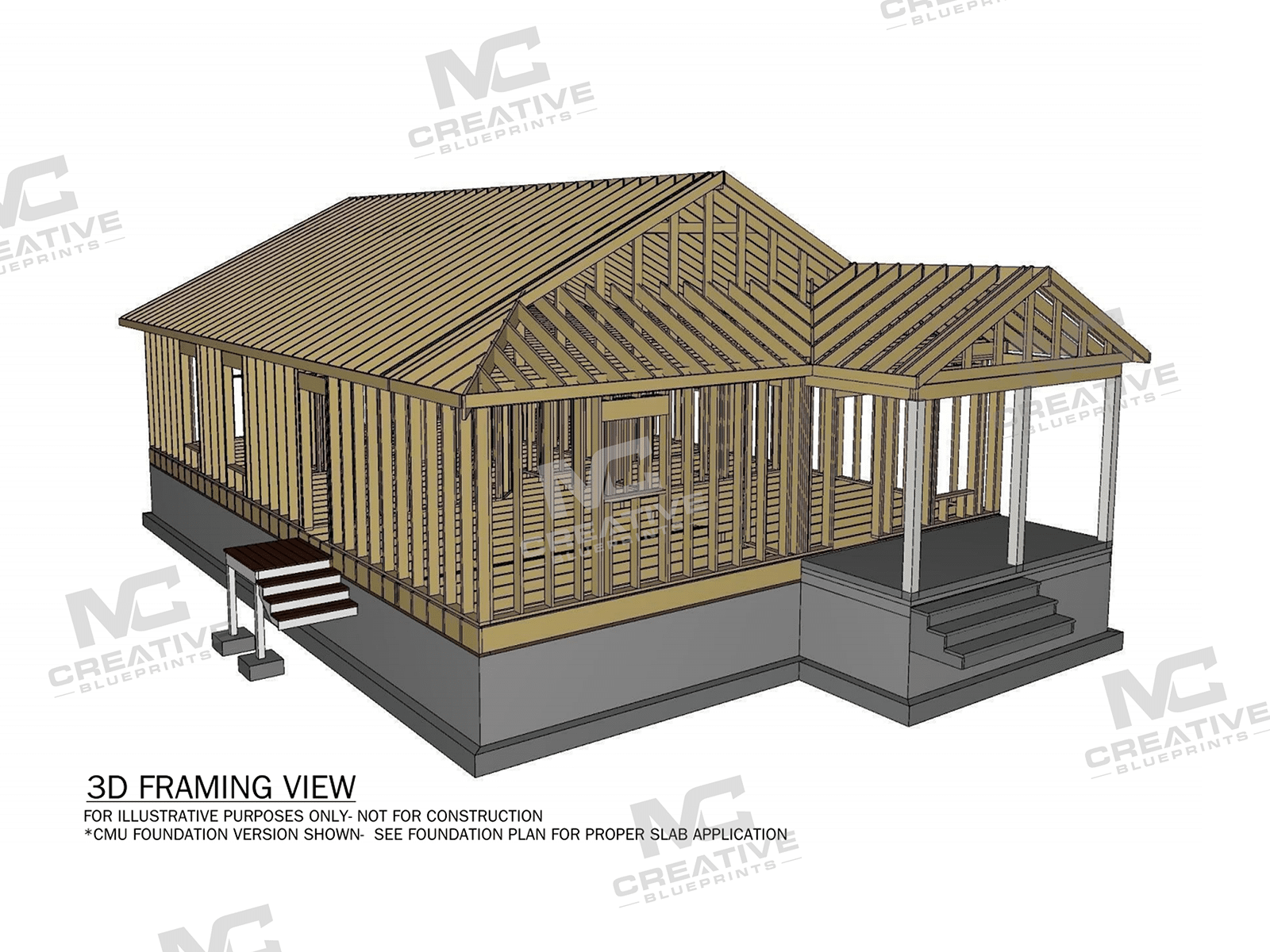

✅ Framing: 2×6 Exterior Walls
✅ Roof Framing: Stick Framed

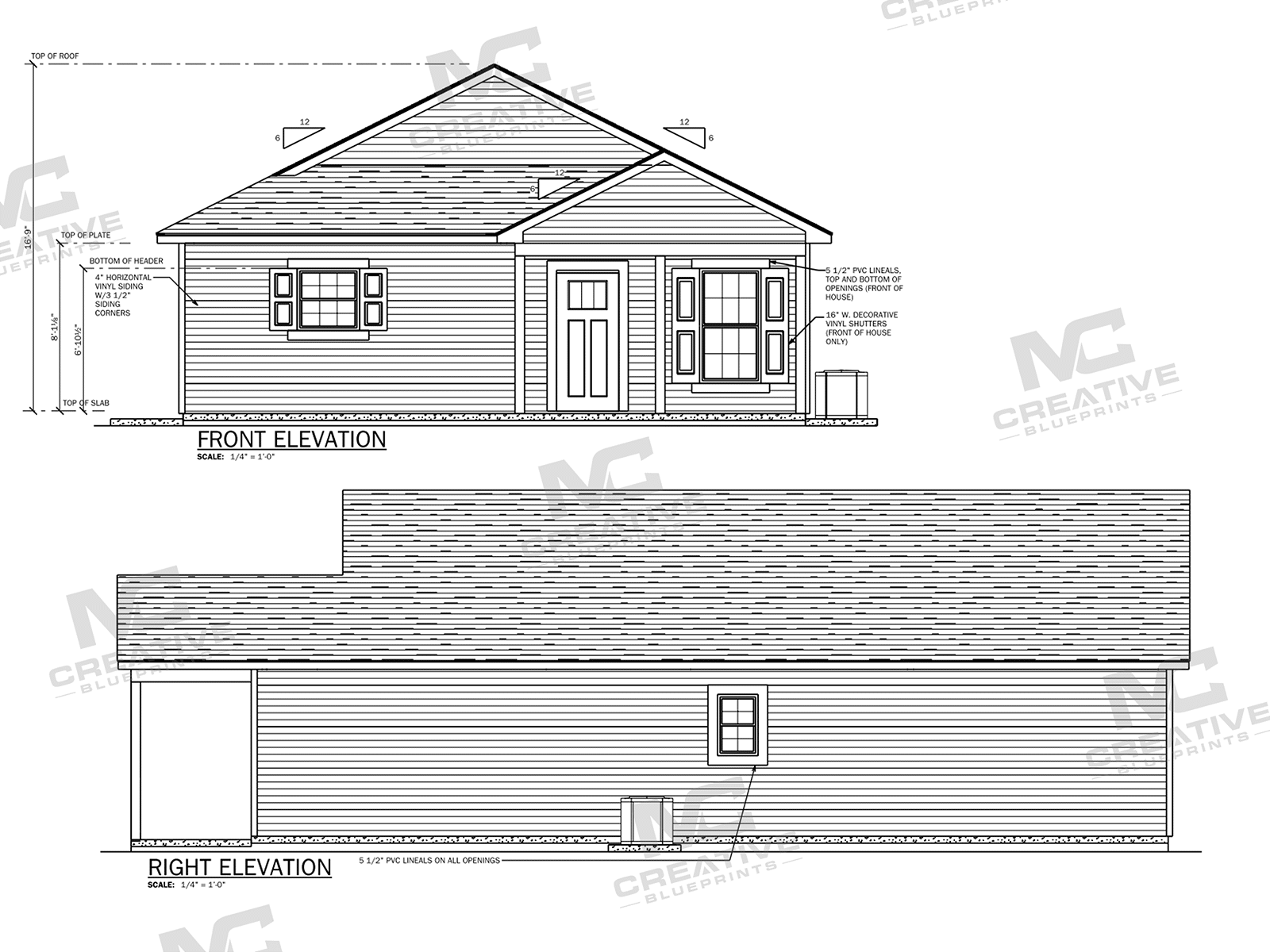

✅ Overall Height: Approx. 17’10”
What’s Included in Your Purchase:
📐 Architectural Floor Plans (PDF) – Fully labeled, professional layout

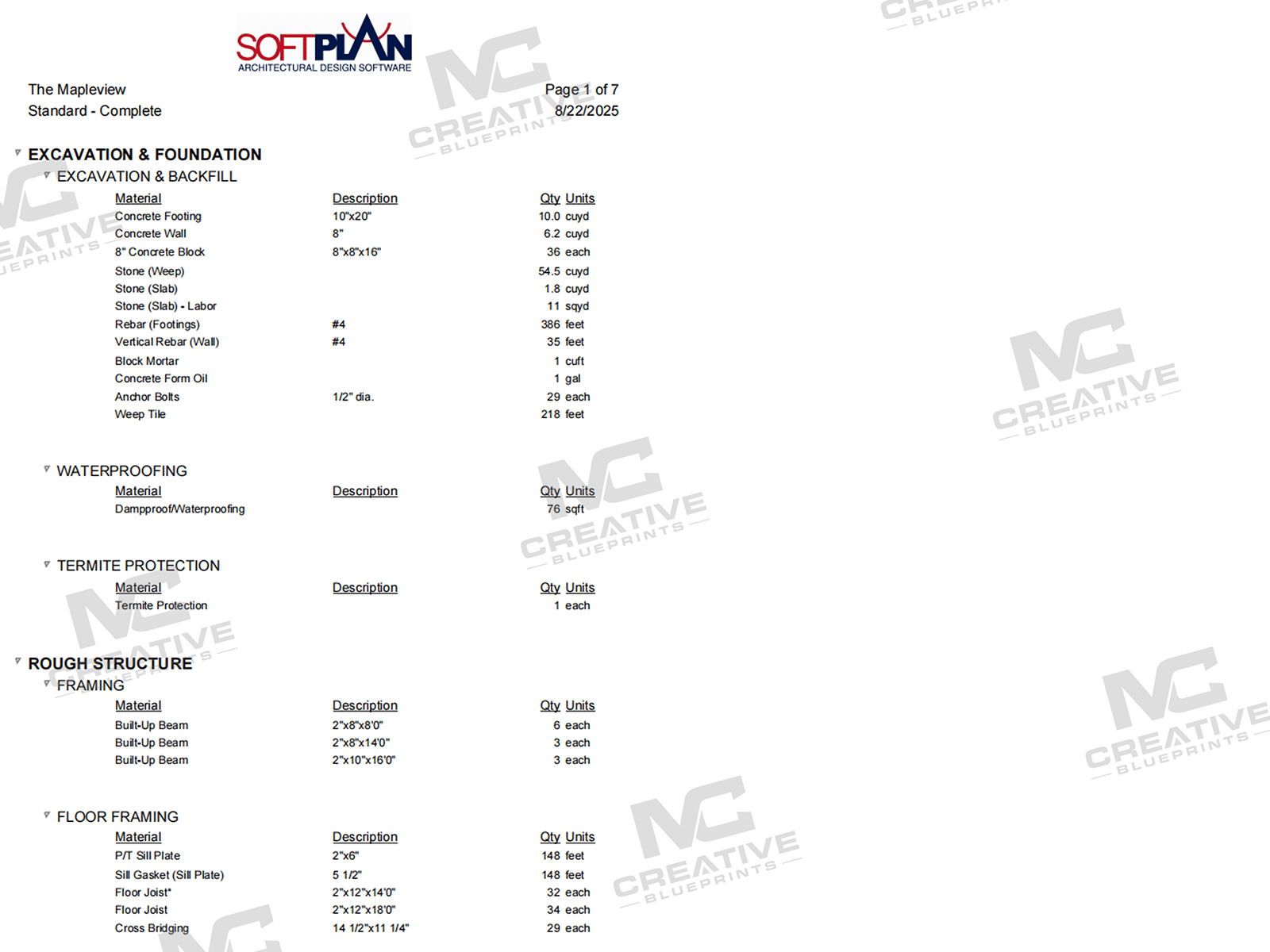

🛠 Material Estimate List – Helps simplify budgeting and construction planning
🏡 Open Concept Layout – Spacious kitchen, living, and dining areas with island seating
💡 Future-Ready Design – Side entry allows for easy garage addition
📩 Need custom adjustments? Message us for modifications!
Important Information:
Digital Download Only – No physical product will be shipped
PDF Format – Sized for 11″x17” blueprint printing
For personal use only
🔨 Build your perfect starter home or downsize in style—download The Maplewood plans today!
📩 Need a modified version? Message us to request custom changes to suit your needs.
Why Choose MC Creative Blueprints?
✔ Professionally designed with 25 years of experience
✔ Easy-to-follow construction plans, optimized for builders & DIYers
✔ Instant download so you can start planning today!
⚠ Copyright Notice: These plans are for personal use only. Redistribution or commercial use is prohibited.
