Park Pointe II Garage Plan (Reversed) | with Carport/Patio | Blueprint PDF (Multi Foundation- CMU or Slab)
ITEM DETAILS
- 2 Car Garage
- Width: 14 ft.
- Length: 23 ft.
- Heated Area: 576 sq. ft.

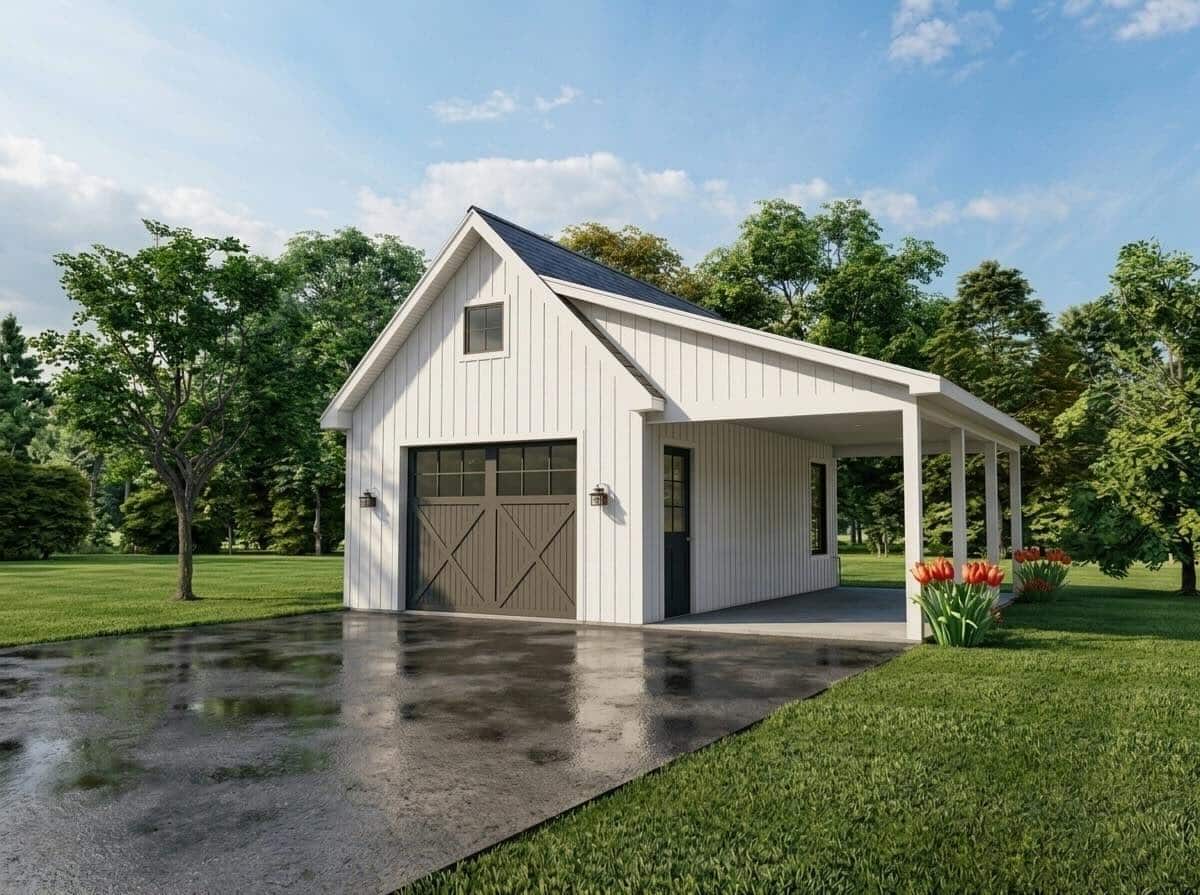

The Park Pointe II is a premiere custom plan designed to deliver a versatile balance of everyday utility and refined luxury. It features a single-car garage sized for one vehicle alongside a carport area that doubles as a covered porch — adding flexible outdoor living space without sacrificing curb appeal.
Styled in a classic farmhouse aesthetic, the plan is built around sturdy 2×6 exterior wall framing and includes two foundation options: slab-on-grade and CMU block. This built-in flexibility allows builders to select the approach best suited to their site conditions, soil, and regional building practices.
This complete set of architectural plans includes everything needed to break ground with confidence.
Plan and Building Features:
✅ Footprint: 24’D. x 24’W. (10’w. x 24’d. Carport/Porch & 14′-0″w. x 24’d. Single Car Garage)
✅ Total Area: 576 sqft. total (240 sqft. Carport/Porch + 336 sqft. Single Car Garage)
✅ Garage Ceiling Height: 8′ clear (8′ 1 1/8″ rough)
✅ Garage Door: (1) 9’ x 7′ overhead garage door with windows
✅ Carport area that doubles as a porch
✅ Foundation Plans: BOTH options included: Slab or CMU Block
✅ Detailed Cross Sections: BOTH options included: Slab or CMU Block
✅ Framing: 2×4 Exterior Walls (16″ O.C.)
✅ Roof Framing: Stick framed with 2×8 Rafters
✅ Roof Pitch: 12/12 Main Pitch and 4/12 Shed Pitch
✅ Overall Height: 15′-10″ +/-
✅ Full Material List: BOTH options included: Slab or CMU Block
What’s Included in Your Purchase:
📐 Complete Architectural Plans (PDF) – 12 detailed sheets including floor layouts, elevations, foundation plans, and construction notes.
🛠 DIY-Friendly Material List – A full list of materials for easy sourcing
* DIY-Friendly Design – Ideal for homeowners and contractors alike, featuring professionally designed specs based on standard North American building codes.
🚗 Multi-Use Functionality – Perfect for vehicle storage, a workshop, or a secondary dwelling unit.
💡 Professionally Designed – Created by MC Creative Blueprints with over 20 years of design experience.📩
Need modifications? Send us a message to discuss custom plan options.
This is a DIGITAL DOWNLOAD. No physical item will be shipped.
Files are formatted to print on 11″x17″ sheets for easy use.
Why Choose MC Creative Blueprints?
✔ Professionally designed with extensive industry experience
✔ Easy-to-follow construction plans, optimized for builders & DIYers
✔ Instant download so you can start planning today!
⚠ Copyright Notice: These plans are for personal use only. Redistribution or commercial use is prohibited.
