Picket Haven House Plan | Ranch Home | Blueprint PDF (Slab on Grade Foundation)

This is the Slab on Grade Foundation version of The Picket Haven — a welcoming single-story home with 3,048 square feet of heated living space. Designed for comfort, flow, and elevated everyday living, this plan brings together spacious rooms, refined details, and a layout that makes life feel easy and connected.

With 10-foot ceilings throughout the entire main floor, the home feels open and generous from the moment you step inside. The great room features a coffered ceiling, built-in bookshelves, and a fireplace that creates a natural gathering place for family time, quiet evenings, and entertaining.

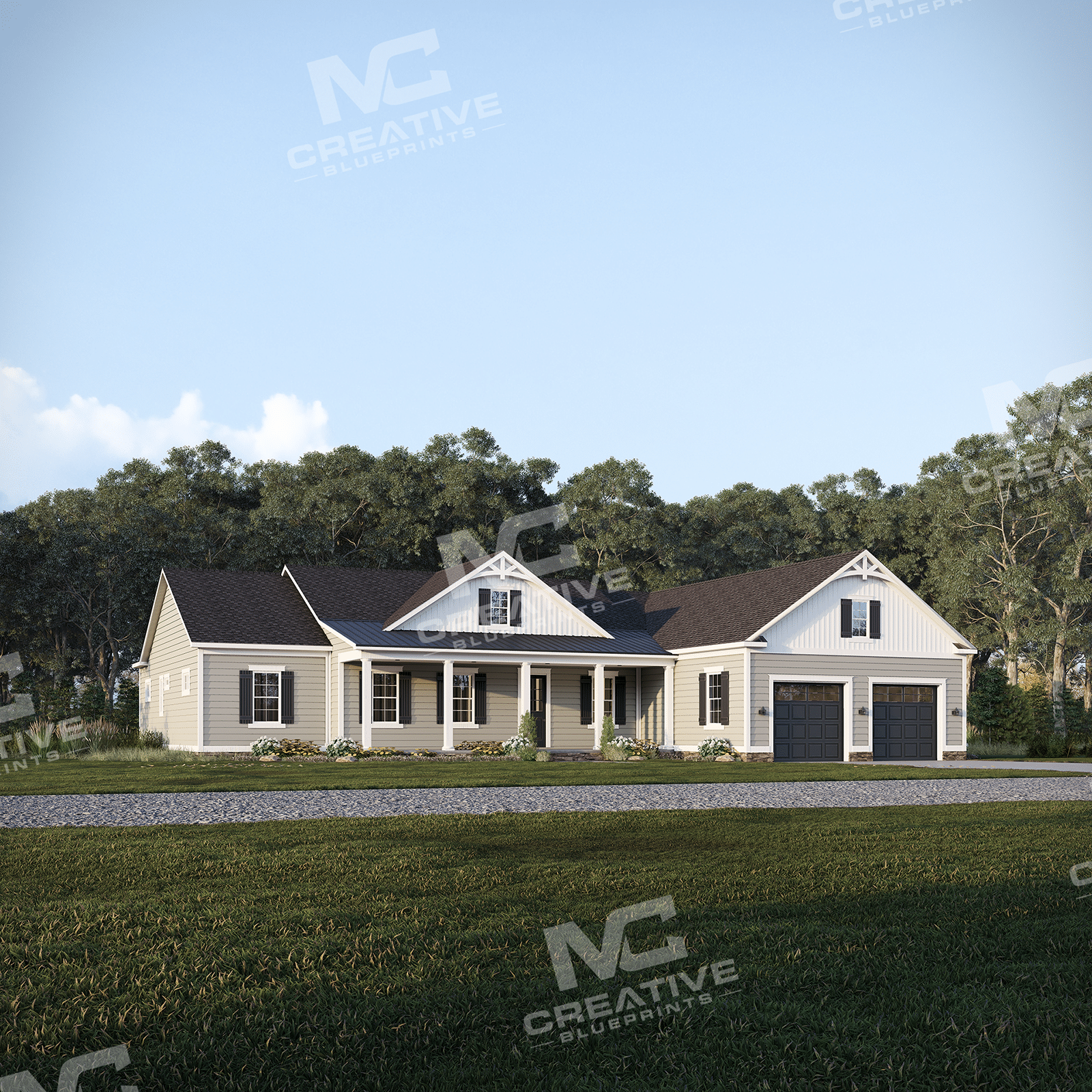

The large front porch delivers classic curb appeal, while the screened rear porch invites relaxed outdoor living without the bugs — ideal for slow mornings, evening dinners, or unwinding after a long day.
The layout is designed for privacy and comfort. The spacious main bedroom suite sits off a private hall and includes a luxury spa-style bathroom, creating a calm retreat of its own. On the opposite side of the home, a full-sized guest suite with its own private bathroom offers a comfortable, independent space for visitors or multigenerational living.

A dedicated flex room can function as a fifth bedroom or convert easily into a home office, study, or hobby room depending on your lifestyle.
The kitchen is built for real cooking and real life. A large island with seating for four, plenty of counter space, and a walk-in pantry with wood shelving and built-in cabinets keep everything organized and within reach. A dedicated dining room makes hosting effortless, whether it’s a holiday meal or a casual get-together.

Storage and functionality continue with a full laundry room, thoughtfully placed away from the main living space to keep noise and clutter out of sight. With 3.5 bathrooms, everyone gets the comfort and flexibility they need.
This plan uses a slab on grade foundation, offering durability, insulation, and stability across varying site conditions.

Plan Features

✅ Total Heated Area: 3,048 sq. ft.
✅ Stories: 1
✅ Ceiling Height: 10′ throughout
✅ Great Room: Coffered ceiling + fireplace + built-in cabinetry and bookshelves
✅ Outdoor Living: Large front porch + screened rear porch
✅ Bedrooms: 4 traditional bedrooms + flex room that functions as a 5th bedroom or office
✅ Bathrooms: 3 Full Baths + 1 Half Bath
✅ Primary Suite: Private hall entry + luxury spa bath
✅ Guest Suite: Full-size bedroom with private bathroom
✅ Kitchen: Large island (seating for 4), abundant workspace
✅ Walk-In Pantry: Wood shelving + built-in cabinets
✅ Dining: Dedicated formal dining room
✅ Laundry: Full-size, dedicated laundry room
✅ Foundation (This Listing): Slab on Grade
✅ Other Foundation Options: Slab and basement versions available upon request

What’s Included in Your Purchase

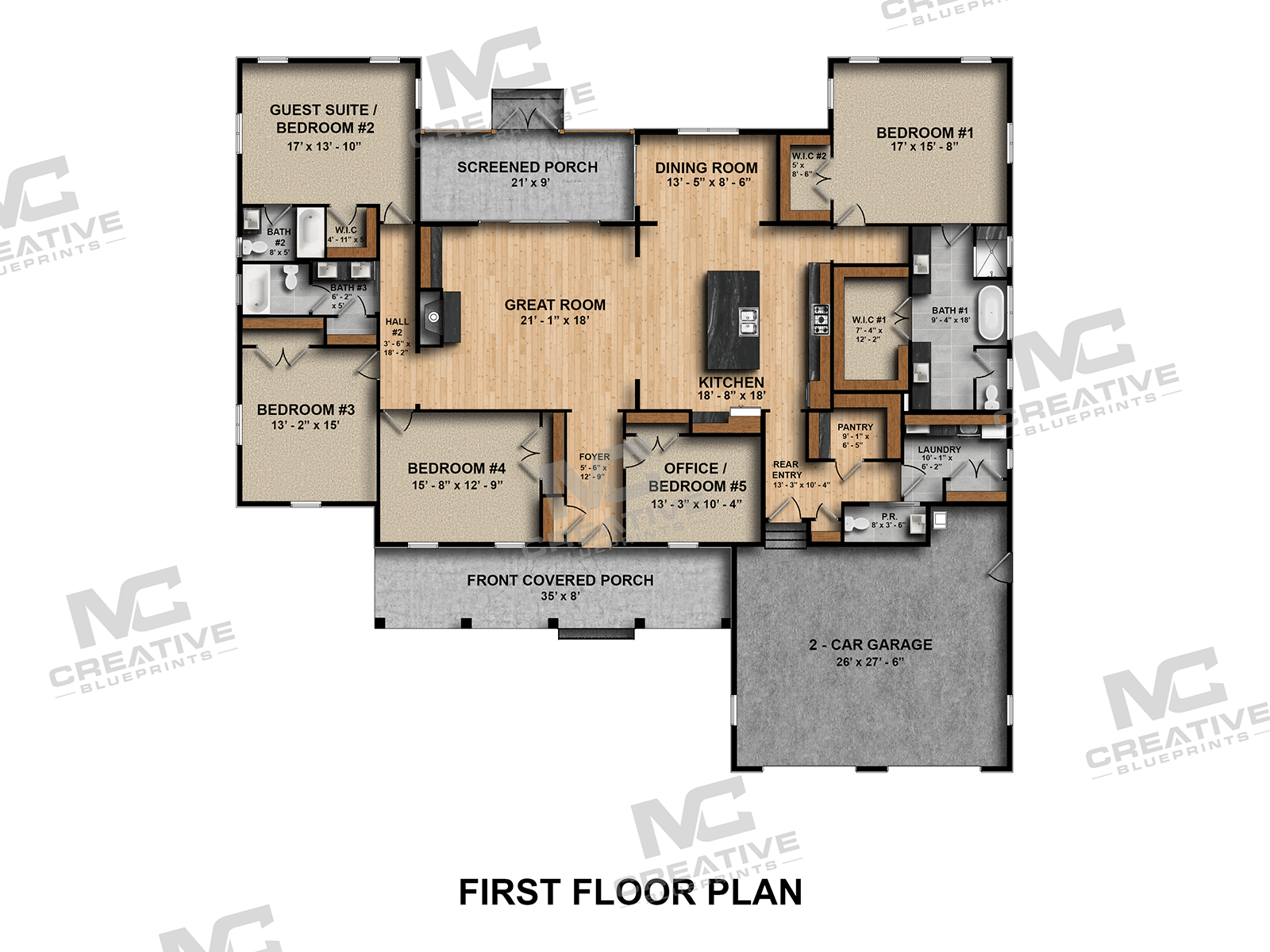

???? Architectural Floor Plans (PDF) – Professionally drafted and fully labeled

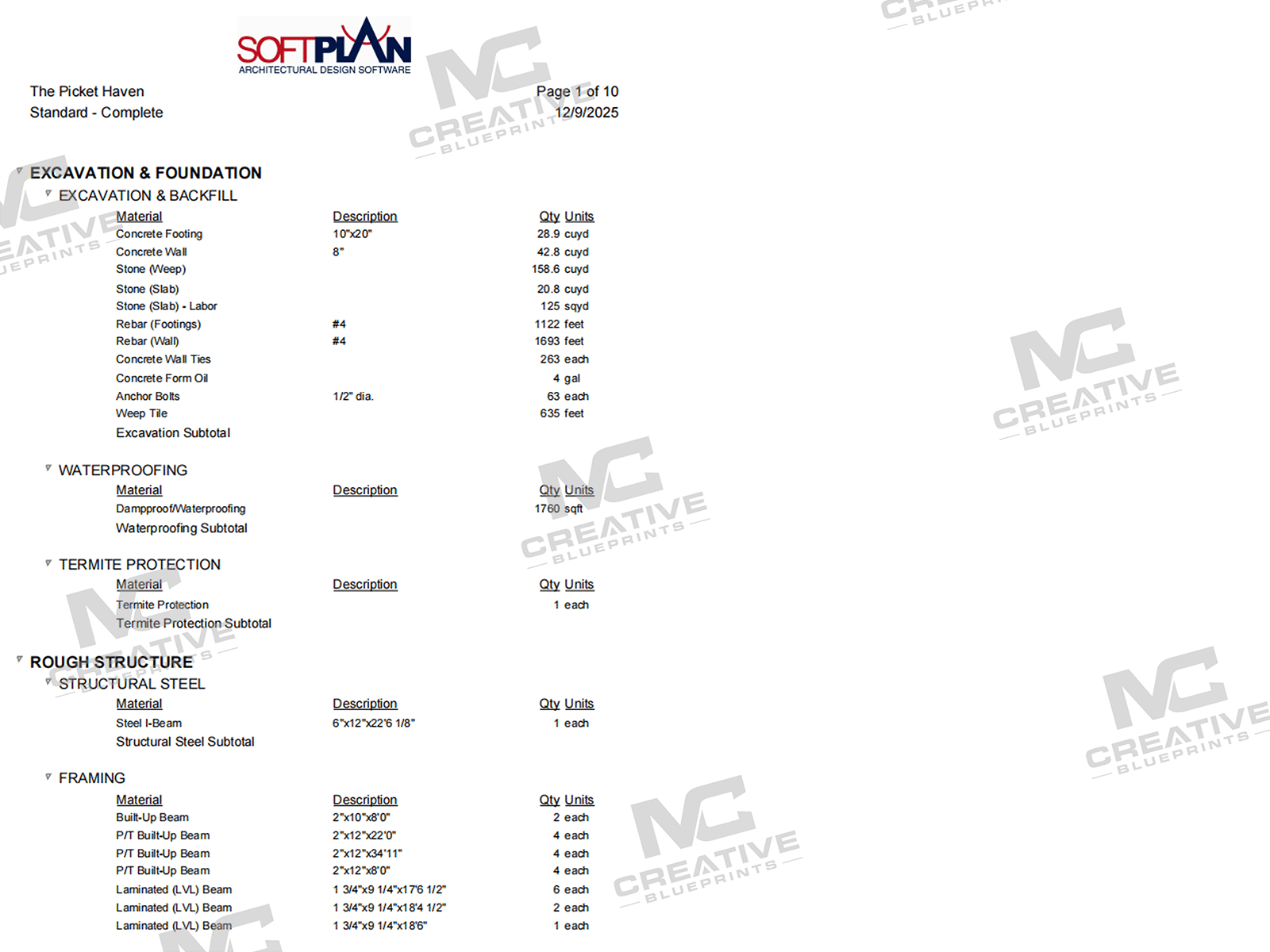

???? Material Estimate List – Supports budgeting and construction planning
???? Family-Friendly Layout – Easy daily flow with defined yet connected spaces
???? Flexible Design – Office/5th bedroom + adaptable gathering areas
???? Custom Modifications Available – Room adjustments, porch changes, or alternate foundation types

Important Information
• Digital Download Only
• PDF Format (Blueprint Sized)
• Licensed for One Single Build
